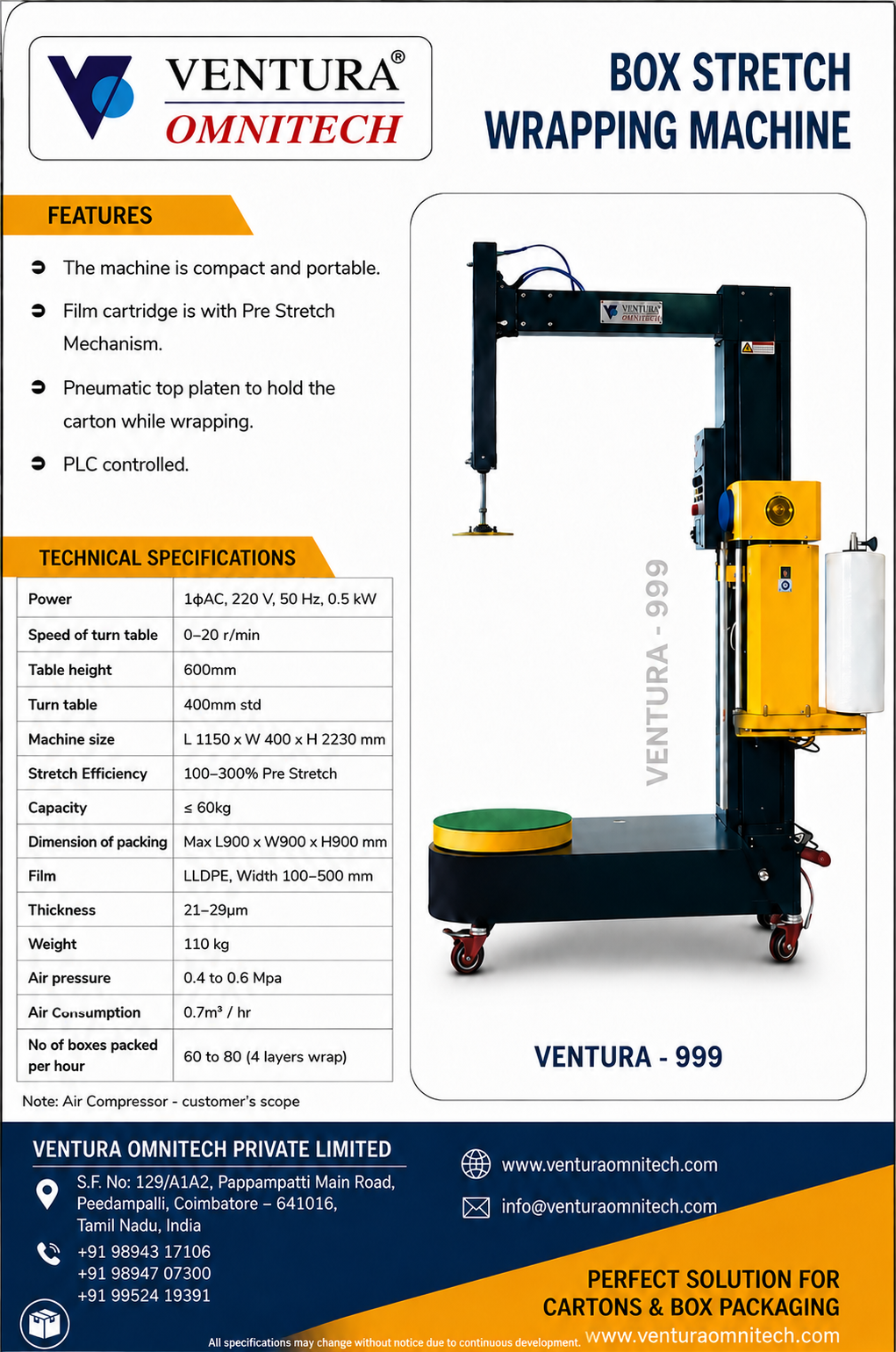

BOX STRETCH WRAPPING
VENTURA 999
Description:
| CATEGORY | SPECIFICATION |
| MACHINE TYPE | Box Wrapping Machine (Manual / Semi-Automatic / Tabletop Model) |
| MODEL | Ventura 999 – customizable |
| APPLICATION | Wrapping of individual boxes, cartons, parcels, or small packages |
| WRAPPING METHOD | Stretch film wrapping using rotating platform or rotating ring/arm |
BOX SIZE RANGE WRAPPING HEIGHT | Min: 150 × 150 mm Max: 800 × 800 mm (varies by model) Up to 600 – 800 mm |
MAXIMUM LOAD WEIGHT PRE-STRETCH RATIO | 30 – 100 kg (depending on platform strength) Manual Tension Control or Powered Pre-Stretch (up to 350%) |
| CONTROL SYSTEM | Manual Switch / Foot Pedal / Timer / Optional Touchscreen |
| WRAP CYCLES | Adjustable: Full wrap, banding, cross wrap |
| TURNTABLE OR RING SPEED | 10 – 30 RPM (Variable speed control) |
| POWER SUPPLY | 220 V, Single Phase, 50/60 Hz |
| POWER CONSUMPTION | 0.5 – 1.2 kW (depending on model) |
| MACHINE DIMENSIONS (L×W×H) | Approx. 800 – 1,200 mm × 600 – 800 mm × 1,000 – 1,200 mm |
