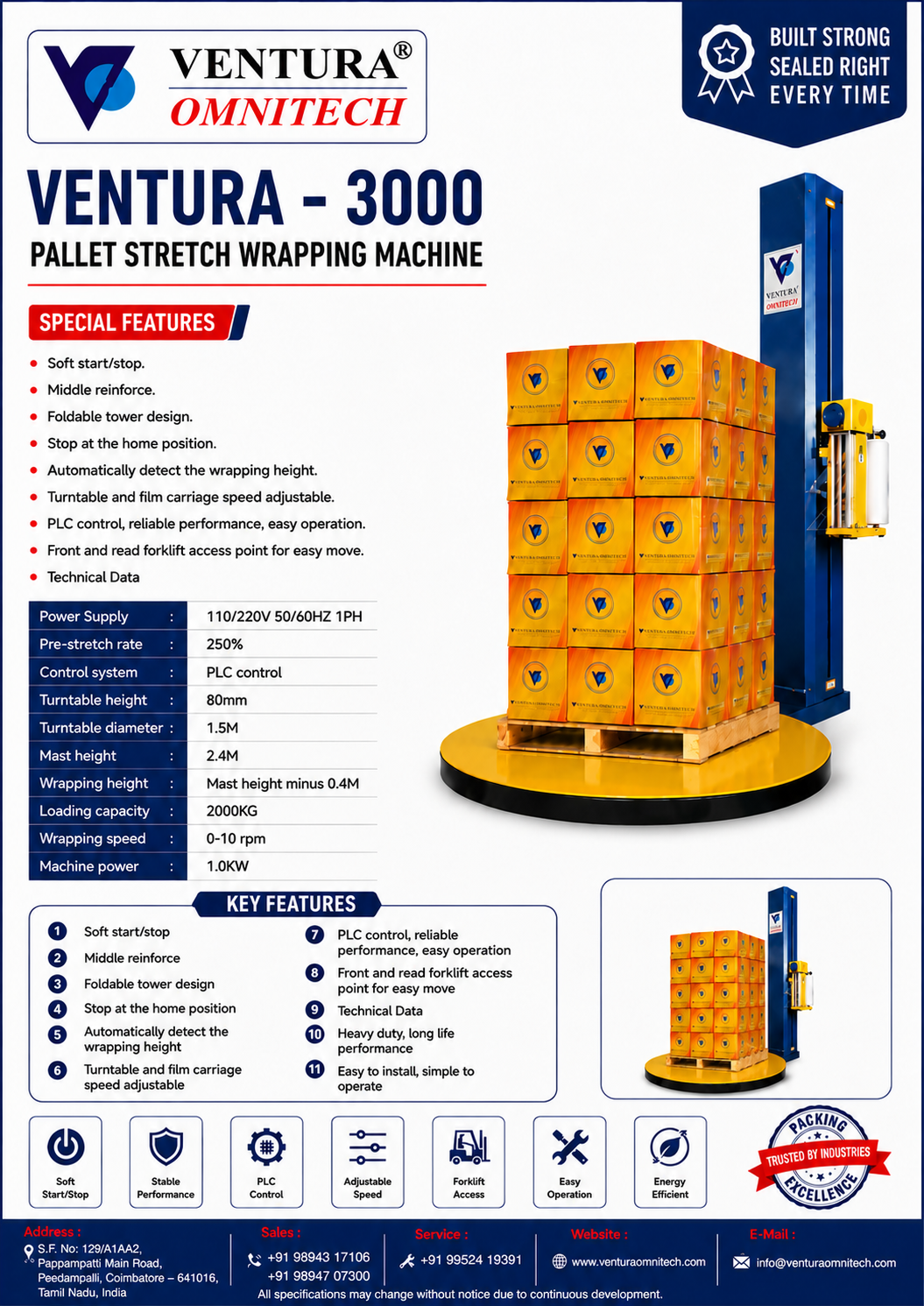

PALLET STRETCH WRAPPING MACHINE
VENTURA 3000
Description:
| CATEGORY | SPECIFICATION |
| MACHINE TYPE | Semi-Automatic or Automatic Pallet Stretch Wrapping Machine |
| MAST TYPE | Fixed or Modular Extended Mast |
| STANDARD WRAPPING HEIGHT | 2,000 mm (2.0 meters) |
| OPTIONAL MAST HEIGHTS | 2,400 mm / 2,600 mm / 2,800 mm / 3,000 mm (customizable up to 3,600 mm) |
| MAST CONSTRUCTION | Reinforced Steel Profile with Chain/Belt Driven Carriage |
| CARRIAGE LIFT TYPE | Chain or Belt Driven (Depending on model) |
| LOAD HEIGHT DETECTION | Automatic via Photoelectric Sensor |
| LOAD HEIGHT SETTING | Auto Detect or Manual Override on Control Panel |
| TURNTABLE DIAMETER | 1,500 – 1,650 mm |
| TURNTABLE HEIGHT | 80 – 100 mm (Low or Standard Profile) |
| TURNTABLE SPEED | 0 – 15 RPM (Variable with Soft Start/Stop) |
| MAXIMUM LOAD WEIGHT | Up to 2,000 kg |
| MAXIMUM PALLET SIZE (L × W) | 1,200 mm × 1,200 mm |
| POWER SUPPLY | 220 – 240 V, Single Phase, 50/60 Hz |
| POWER CONSUMPTION | 1.5 – 2.5 kW (Depending on machine and height) |
| MOTOR TYPE | AC Motors (Turntable & Carriage) |
| MACHINE DIMENSIONS (L × W × H) | Width & Length: Approx. 2,400 mm × 1,500 mm Height: Depends on mast selected |
| MACHINE WEIGHT | 700 – 1,000 kg (Varies with mast height) |
